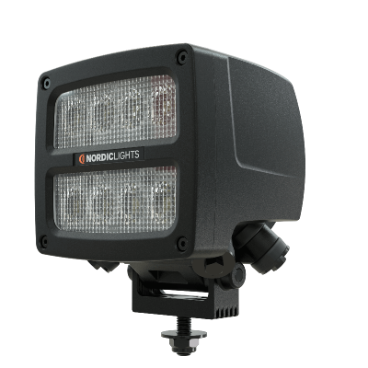

Scorpius XTR 7500 QD
NORDIC LIGHTS® Scorpius XTR 7500 QD work light delivers stunning illumination, it has an operational lumens output of 7400 lm. This product is primarily used in the mining industry and is particularly useful for bucket-wheel excavators, draglines, highwall miners, hydraulic shovels, surface miners, and wheel dozers. This LED work light is equipped with the revolutionizing QUAKE dampening system, taking protection against vibration and shock to a whole new level. The Scorpius XTR 7500 QD meets the expectations of the most demanding situations.
Description
NORDIC LIGHTS® Scorpius XTR 7500 QD work light delivers stunning illumination, it has an operational lumens output of 7400 lm. This product is primarily used in the mining industry and is particularly useful for bucket-wheel excavators, draglines, highwall miners, hydraulic shovels, surface miners, and wheel dozers. This LED work light is equipped with the revolutionizing QUAKE dampening system, taking protection against vibration and shock to a whole new level. The Scorpius XTR 7500 QD meets the expectations of the most demanding situations.
| Feature | Specification |
| Theoretical Lumens | 11800lm |
| Operational Lumens | 7400lm |
| Colour Temperature | 5700K |
| Nominal Voltage (DC) | 24V |
| Input Voltage Range (DC) | 18 – 32V |
| Power Consumption | 71W |
| Nominal Current | 2.96A @ 24V |
| Connector Type | Built-in Deutsch DT-2 (2-pin) |
| Mounting | Single Bolt M10 |
| Shock Resistance | 60G |
| Vibration Resistance | 15.3Grms (24-2000Hz) / 4.65Grms (12-2000Hz) |
| Lens Material | Glass |
| Housing Material | Aluminum |
| Weight | 2.5kg |
| IP Rating | IP68, IP6K9K, SAE J1455 |
| Salt Spray Test | ISO 9227 240H |
| EMC Compliance | CISPR 25 Class 3, ISO 13766, ISO 14982, ISO 7637-2 |
| Operating Temperature | -40°C to +85°C (Overheat protected) |
