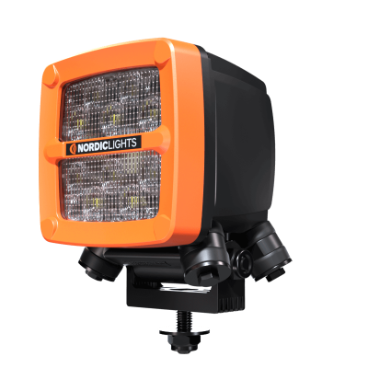

Scorpius XTR 3500 QD S
The Scorpius XTR 3500 QD S arrives with a Glare-Free light pattern. The Glare-Free optics are designed with a clear cut-off line on eye level, with maximum visibility under the cut-off line. You’ll gain excellent near-field illumination and work area lighting, without blinding other vehicle operators or on-foot personnel. Equip the Scorpius XTR 3500 QD S to the back, sides, and even to the front of your machine. The Scorpius XTR 3500 QD S comes in at 3500 operational lumens. An extremely narrow Pencil Beam light pattern is also available, ensuring maximum reach.
Description
The Scorpius XTR 3500 QD S arrives with a Glare-Free light pattern. The Glare-Free optics are designed with a clear cut-off line on eye level, with maximum visibility under the cut-off line. You’ll gain excellent near-field illumination and work area lighting, without blinding other vehicle operators or on-foot personnel. Equip the Scorpius XTR 3500 QD S to the back, sides, and even to the front of your machine. The Scorpius XTR 3500 QD S comes in at 3500 operational lumens. An extremely narrow Pencil Beam light pattern is also available, ensuring maximum reach.
| Feature | Specification |
| Theoretical Lumens | 4500lm |
| Operational Lumens | 3500lm |
| Colour Temperature | 5700K |
| Nominal Voltage (DC) | 24V |
| Input Voltage Range (DC) | 18 – 32V |
| Power Consumption | 52W |
| Nominal Current | 2.0A @ 24V |
| Connector Type | Built-in Deutsch DT-2 (2-pin) |
| Mounting | Single Bolt M10 |
| Shock Resistance | 60G |
| Vibration Resistance | 20Grms (10-2000Hz) / 4.65Grms (12-2000Hz) |
| Lens Material | Glass |
| Housing Material | Aluminum |
| Weight | 1.5kg |
| IP Rating | IP68, IP6K9K |
| Salt Spray Test | ISO 9227 240H |
| EMC Compliance | CISPR 25 Class 5, EN12895, ISO 13766, ISO 14982, ISO 7637-2 |
| Operating Temperature | -40°C to +85°C (Overheat protected) |
