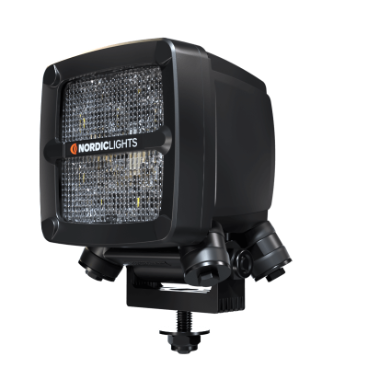

Scorpius XTR 3500 QD
The classic work light, redesigned from scratch to be an even better fit for mining. The Scorpius XTR 3500 QD is built for work above and below ground. Suitable for 24V systems, this work light features glass lens, QUAKE Dampening for extreme vibration resistance, and an excellent lumen-per-watt-ratio.
Description
The classic work light, redesigned from scratch to be an even better fit for mining. The Scorpius XTR 3500 QD is built for work above and below ground. Suitable for 24V systems, this work light features glass lens, QUAKE Dampening for extreme vibration resistance, and an excellent lumen-per-watt-ratio.
| Feature | Specification |
| Theoretical Lumens | 5000lm |
| Operational Lumens | 3200lm |
| Colour Temperature | 5700K |
| Nominal Voltage (DC) | 24V |
| Input Voltage Range (DC) | 18 – 32V |
| Power Consumption | 28W |
| Nominal Current | 1.2A @ 24V |
| Connector Type | Built-in Deutsch DT-2 (2-pin) |
| Mounting | Single Bolt M10 |
| Shock Resistance | 60G |
| Vibration Resistance | 20Grms (10-2000Hz) / 4.65Grms (12-2000Hz) |
| Lens Material | Glass |
| Housing Material | Aluminum |
| Weight | 1.5kg |
| IP Rating | IP68, IP6K9K |
| Salt Spray Test | ISO 9227 240H |
| EMC Compliance | CISPR 25 Class 5, EN12895, ISO 13766, ISO 14982, ISO 7637-2 |
| Operating Temperature | -40°C to +85°C (Overheat protected) |
