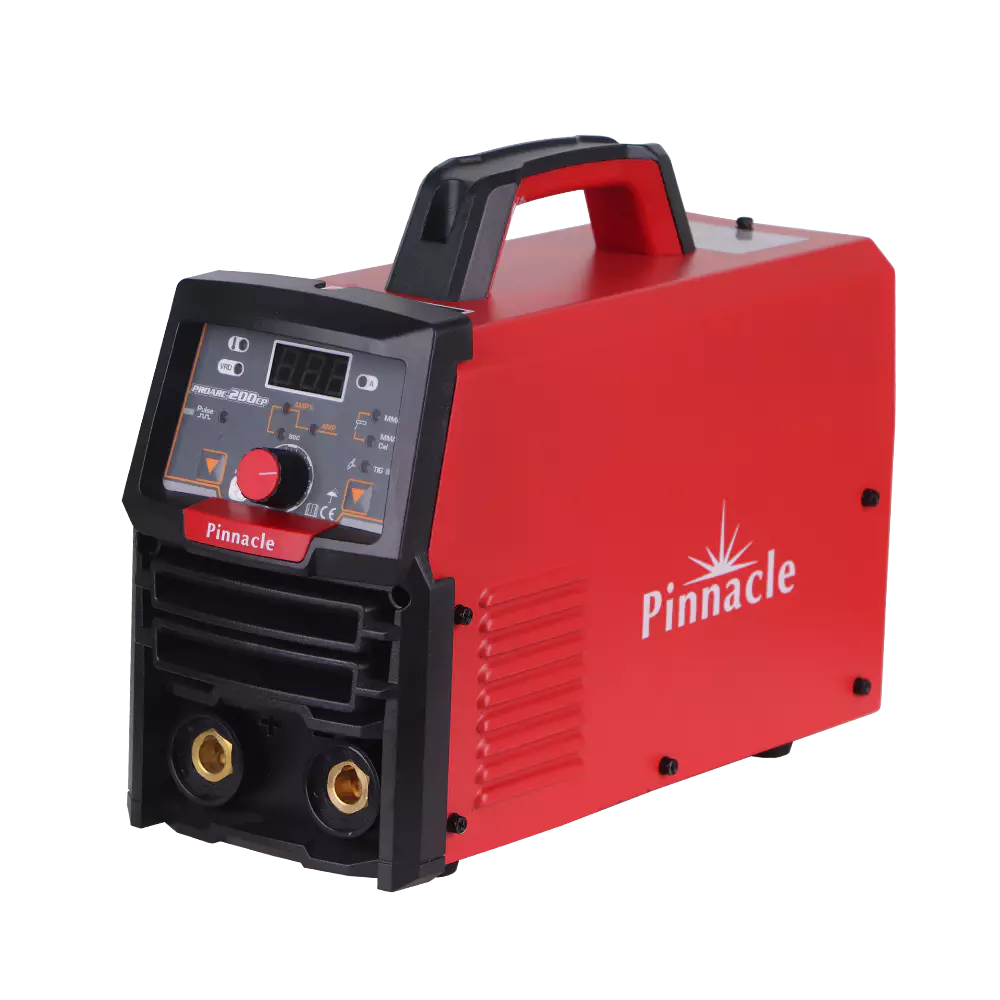

Pinnacle PROARC 200CP MMA Welding Machine
- IGBT module technology for superior performance and reliability.
- Hot start function for easy arc starts.
- Anti-sticking function to prevent electrode sticking.
- Arc force function for a stable arc.
- VRD function for reduced risk of electric shock.
- Capable of MMA/ARC welding and LIFT TIG welding.
- 200Amp welding machine.
- LCD Display & Synergic operation.
- Automatic Spot Welding can be done by automatically starting& ending arc according to set interval time
Description
- IGBT module technology for superior performance and reliability.
- Hot start function for easy arc starts.
- Anti-sticking function to prevent electrode sticking.
- Arc force function for a stable arc.
- VRD function for reduced risk of electric shock.
- Capable of MMA/ARC welding and LIFT TIG welding.
- 200Amp welding machine.
- LCD Display & Synergic operation.
- Automatic Spot Welding can be done by automatically starting& ending arc according to set interval time
| Feature | Specification |
| Input Power Voltage | AC 220V $pm$ 15%, 1 Phase |
| Input Voltage Frequency | 50/60 Hz |
| Efficiency ($eta$) | 80% |
| Rated Input Current | 40A |
| No-Load Voltage | 93V |
| Output Current Range | 10 – 200A (MIG/TIG) |
| Power Factor | 0.83 |
| Duty Cycle | 60% |
| Welding Electrode Size | 1.0mm – 5.0mm |
| Insulation Class | H |
| Protection Class | IP21S |
